• Oxygen source ozone generator

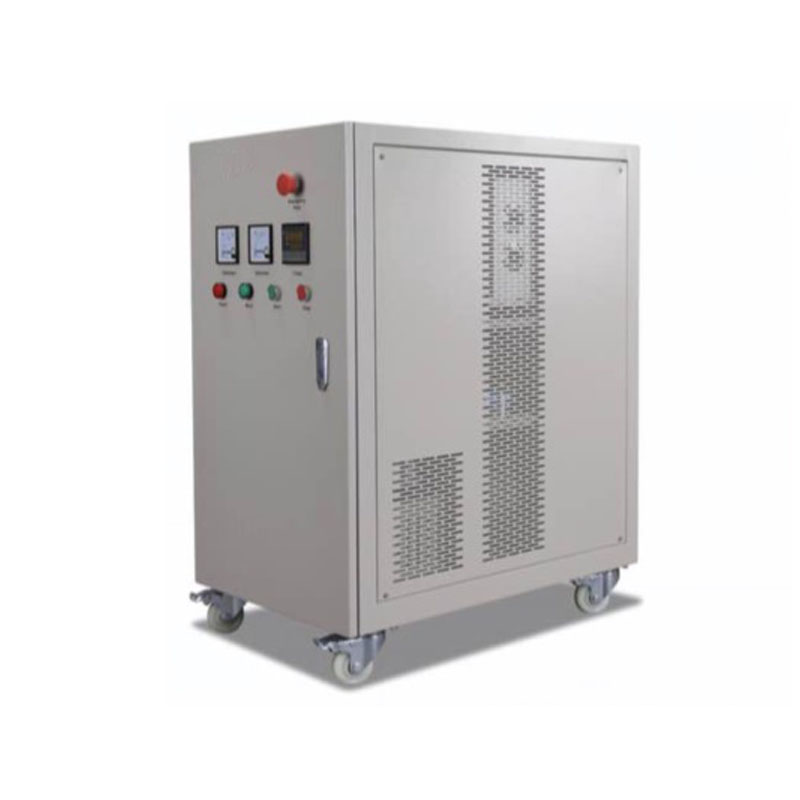

OZ-YA Series air cooled oxygen source ozone generator.
Features:
1.      Built-in oil-free air compressor, chiller, oxygen concentrator, high ozone concentration.
2.      Installed air cooled ceramic corona discharge ozone tube and high frequency power supply, stable ozone output, easy operation and long service life.
3.      Compact design with all parts inside, movable with wheels.
4.      With smart timer for automatic working and stop.
5.      With protection design of over-current and over-voltage, ensuring the running safety.

Control panel:
Main Switch     Power Switch     Voltmeter     Ampmeter     Timer
Emergency Stop     Working Indicator     Power Indicator     Alarm

Functions:
1.      Sterilization: destroy a variety of bacteria and viruses efficiently in air, water and food, but without secondary pollution.
2.      Detoxification: Ozone can purify the harmful gas, such as formaldehyde, toluene, etc, also can remove residual pesticides, organic  fertilizer from the food.
3.      Deodorization: effective eliminate various bad smell, such cooking odors, pet odors, garbage odors, cigarette smoke odors, mold and mildew odors, also for floodand fire restoration, etc.
4.      Oxygen increasing: ozone is not only safe for air and water disinfection, but also can improve the oxygen level for air and water, for poultry/fish farming, drinking water treatment, etc.


Item

Unit

OZ-YA10G

OZ-YA15G

OZ-YA20G

OZ-YA30G

OZ-YA40G

Oxygen flow rate

LPM

3.5

5

8

10

10

Ozone concentration

Mg/L

49~88

Ozone output

G/Hr

10

15

20

30

40

Power

Kw

≤0.81

≤0.924

≤1.00

≤1.23

≤1.5

Current

A

3.6

4.2

4.5~4.7

 5.6~5.8

6.5~6.7

Net Weight

KG

86

89

92

97

105

Size

mm

500×720*980


This oxygen source ozone generator, with stable ozone output and high ozone concentration, safe and powerful for food, drinking water treatment.
